前面的例子尽管使用了OpenGL ES 3D图形库,但绘制的还是二维图形(平面上的正方形)。Mesh(网格,三角面)是构成空间形体的基本元素,前面的正方形也是有两个Mesh构成的。本篇将介绍使用Mesh构成四面体,椎体等基本空间形体。

Design设计

在使用OpenGL 框架时一个好的设计原则是使用“Composite Pattern”,本篇采用如下设计:

Android OpenGL ES 简明开发教程六: 真正的3D图形Mesh

首先定义一个基类 Mesh,所有空间形体最基本的构成元素为Mesh(三角形网格) ,其基本定义如下:

public class Mesh {
 // Our vertex buffer.
 private FloatBuffer verticesBuffer = null;

 // Our index buffer.
 private ShortBuffer indicesBuffer = null;

 // The number of indices.
 private int numOfIndices = -1;

 // Flat Color
 private float[] rgba
 = new float[] { 1.0f, 1.0f, 1.0f, 1.0f };

 // Smooth Colors
 private FloatBuffer colorBuffer = null;

 // Translate params.
 public float x = 0;

 public float y = 0;

 public float z = 0;

 // Rotate params.
 public float rx = 0;

 public float ry = 0;

 public float rz = 0;

 public void draw(GL10 gl) {
 // Counter-clockwise winding.
 gl.glFrontFace(GL10.GL_CCW);
 // Enable face culling.
 gl.glEnable(GL10.GL_CULL_FACE);
 // What faces to remove with the face culling.
 gl.glCullFace(GL10.GL_BACK);
 // Enabled the vertices buffer for writing and
 //to be used during
 // rendering.
 gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
 // Specifies the location and data format
 //of an array of vertex
 // coordinates to use when rendering.
 gl.glVertexPointer(3, GL10.GL_FLOAT, 0, verticesBuffer);
 // Set flat color
 gl.glColor4f(rgba[0], rgba[1], rgba[2], rgba[3]);
 // Smooth color
 if (colorBuffer != null) {
 // Enable the color array buffer to be
 //used during rendering.
 gl.glEnableClientState(GL10.GL_COLOR_ARRAY);
 gl.glColorPointer(4, GL10.GL_FLOAT, 0, colorBuffer);
 }

 gl.glTranslatef(x, y, z);
 gl.glRotatef(rx, 1, 0, 0);
 gl.glRotatef(ry, 0, 1, 0);
 gl.glRotatef(rz, 0, 0, 1);

 // Point out the where the color buffer is.
 gl.glDrawElements(GL10.GL_TRIANGLES, numOfIndices,
 GL10.GL_UNSIGNED_SHORT, indicesBuffer);
 // Disable the vertices buffer.
 gl.glDisableClientState(GL10.GL_VERTEX_ARRAY);
 // Disable face culling.
 gl.glDisable(GL10.GL_CULL_FACE);
 }

 protected void setVertices(float[] vertices) {
 // a float is 4 bytes, therefore
 //we multiply the number if
 // vertices with 4.
 ByteBuffer vbb
 = ByteBuffer.allocateDirect(vertices.length * 4);
 vbb.order(ByteOrder.nativeOrder());
 verticesBuffer = vbb.asFloatBuffer();
 verticesBuffer.put(vertices);
 verticesBuffer.position(0);
 }

 protected void setIndices(short[] indices) {
 // short is 2 bytes, therefore we multiply
 //the number if
 // vertices with 2.
 ByteBuffer ibb
 = ByteBuffer.allocateDirect(indices.length * 2);
 ibb.order(ByteOrder.nativeOrder());
 indicesBuffer = ibb.asshortBuffer();
 indicesBuffer.put(indices);
 indicesBuffer.position(0);
 numOfIndices = indices.length;
 }

 protected void setColor(float red, float green,
 float blue, float alpha) {
 // Setting the flat color.
 rgba[0] = red;
 rgba[1] = green;
 rgba[2] = blue;
 rgba[3] = alpha;
 }

 protected void setColors(float[] colors) {
 // float has 4 bytes.
 ByteBuffer cbb
 = ByteBuffer.allocateDirect(colors.length * 4);
 cbb.order(ByteOrder.nativeOrder());
 colorBuffer = cbb.asFloatBuffer();
 colorBuffer.put(colors);
 colorBuffer.position(0);
 }
}
  • setVertices 允许子类重新定义顶点坐标。
  • setIndices 允许子类重新定义顶点的顺序。
  • setColor /setColors允许子类重新定义颜色。
  • x,y,z 定义了平移变换的参数。
  • rx,ry,rz 定义旋转变换的参数。

Plane

有了Mesh定义之后,再来构造Plane,plane可以有宽度,高度和深度,宽度定义为沿X轴方向的长度,深度定义为沿Z轴方向长度,高度为Y轴方向。

Android OpenGL ES 简明开发教程六: 真正的3D图形Segments为形体宽度,高度,深度可以分成的份数。 Segments在构造一个非均匀分布的Surface特别有用,比如在一个游戏场景中,构造地貌,使的Z轴的值随机分布在-0.1到0.1之间,然后给它渲染好看的材质就可以造成地图凹凸不平的效果。

Android OpenGL ES 简明开发教程六: 真正的3D图形上面图形中Segments为一正方形,但在OpenGL中我们需要使用三角形,所有需要将Segments分成两个三角形。为Plane 定义两个构造函数:

// Let you decide the size of the plane but still only one segment.
public Plane(float width, float height)

// For alla your settings.
public Plane(float width, float height, int widthSegments, int heightSegments)

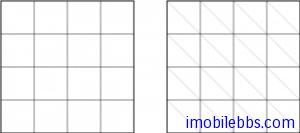

比如构造一个1 unit 宽和 1 unit高,并分成4个Segments,使用图形表示如下:

Android OpenGL ES 简明开发教程六: 真正的3D图形左边的图显示了segments ,右边的图为需要创建的Face(三角形)。

Plane类的定义如下:

public class Plane extends Mesh {
 public Plane() {
 this(1, 1, 1, 1);
 }

 public Plane(float width, float height) {
 this(width, height, 1, 1);
 }

 public Plane(float width, float height, int widthSegments,
 int heightSegments) {
 float[] vertices
 = new float[(widthSegments + 1)
 * (heightSegments + 1) * 3];
 short[] indices
 = new short[(widthSegments + 1)
 * (heightSegments + 1)* 6];

 float xOffset = width / -2;
 float yOffset = height / -2;
 float xWidth = width / (widthSegments);
 float yHeight = height / (heightSegments);
 int currentVertex = 0;
 int currentIndex = 0;
 short w = (short) (widthSegments + 1);
 for (int y = 0; y < heightSegments + 1; y++) {
 for (int x = 0; x < widthSegments + 1; x++) {
 vertices[currentVertex] = xOffset + x * xWidth;
 vertices[currentVertex + 1] = yOffset + y * yHeight;
 vertices[currentVertex + 2] = 0;
 currentVertex += 3;

 int n = y * (widthSegments + 1) + x;

 if (y < heightSegments && x < widthSegments) {
 // Face one
 indices[currentIndex] = (short) n;
 indices[currentIndex + 1] = (short) (n + 1);
 indices[currentIndex + 2] = (short) (n + w);
 // Face two
 indices[currentIndex + 3] = (short) (n + 1);
 indices[currentIndex + 4] = (short) (n + 1 + w);
 indices[currentIndex + 5] = (short) (n + 1 + w - 1);

 currentIndex += 6;
 }
 }
 }

 setIndices(indices);
 setVertices(vertices);
 }
}

Cube

下面来定义一个正方体(Cube),为简单起见,这个四面体只可以设置宽度,高度,和深度,没有和Plane一样提供Segments支持。

public class Cube extends Mesh {
 public Cube(float width, float height, float depth) {
 width  /= 2;
 height /= 2;
 depth  /= 2;

 float vertices[] = { -width, -height, -depth, // 0
 width, -height, -depth, // 1
 width,  height, -depth, // 2
 -width,  height, -depth, // 3
 -width, -height,  depth, // 4
 width, -height,  depth, // 5
 width,  height,  depth, // 6
 -width,  height,  depth, // 7
 };

 short indices[] = { 0, 4, 5,
 0, 5, 1,
 1, 5, 6,
 1, 6, 2,
 2, 6, 7,
 2, 7, 3,
 3, 7, 4,
 3, 4, 0,
 4, 7, 6,
 4, 6, 5,
 3, 0, 1,
 3, 1, 2, };

 setIndices(indices);
 setVertices(vertices);
 }
}

Group

Group可以用来管理多个空间几何形体,如果把Mesh比作Android的View ,Group可以看作Android的ViewGroup,Android的View的设计也是采用的“Composite Pattern”。

Group的主要功能是把针对Group的操作(如draw)分发到Group中的每个成员对应的操作(如draw)。

Group定义如下:

public class Group extends Mesh {
 private Vector<Mesh> children = new Vector<Mesh>();

 @Override
 public void draw(GL10 gl) {
 int size = children.size();
 for( int i = 0; i < size; i++)
 children.get(i).draw(gl);
 }

 /**
 * @param location
 * @param object
 * @see java.util.Vector#add(int, java.lang.Object)
 */
 public void add(int location, Mesh object) {
 children.add(location, object);
 }

 /**
 * @param object
 * @return
 * @see java.util.Vector#add(java.lang.Object)
 */
 public boolean add(Mesh object) {
 return children.add(object);
 }

 /**
 *
 * @see java.util.Vector#clear()
 */
 public void clear() {
 children.clear();
 }

 /**
 * @param location
 * @return
 * @see java.util.Vector#get(int)
 */
 public Mesh get(int location) {
 return children.get(location);
 }

 /**
 * @param location
 * @return
 * @see java.util.Vector#remove(int)
 */
 public Mesh remove(int location) {
 return children.remove(location);
 }

 /**
 * @param object
 * @return
 * @see java.util.Vector#remove(java.lang.Object)
 */
 public boolean remove(Object object) {
 return children.remove(object);
 }

 /**
 * @return
 * @see java.util.Vector#size()
 */
 public int size() {
 return children.size();
 }

}

其它建议

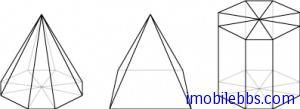

上面我们定义里Mesh, Plane, Cube等基本空间几何形体,对于构造复杂图形(如人物),可以预先创建一些通用的几何形体,如果在组合成较复杂的形体。除了上面的基本形体外,可以创建如Cone,Pryamid, Cylinder等基本形体以备后用。

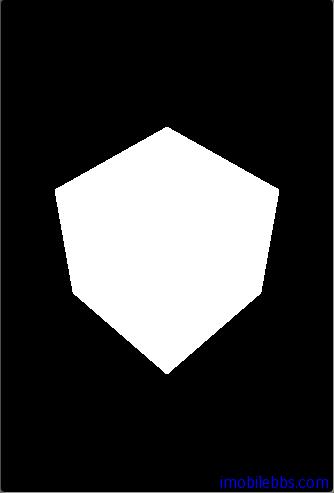

Android OpenGL ES 简明开发教程六: 真正的3D图形示例代码下载,显示结果如下:

Android OpenGL ES 简明开发教程六: 真正的3D图形
